| System | JWF-3P-22K-A |
| Housing material | 1.5mm metal Shell |
| Dimension | 370*232*145mm (H*W*D) |

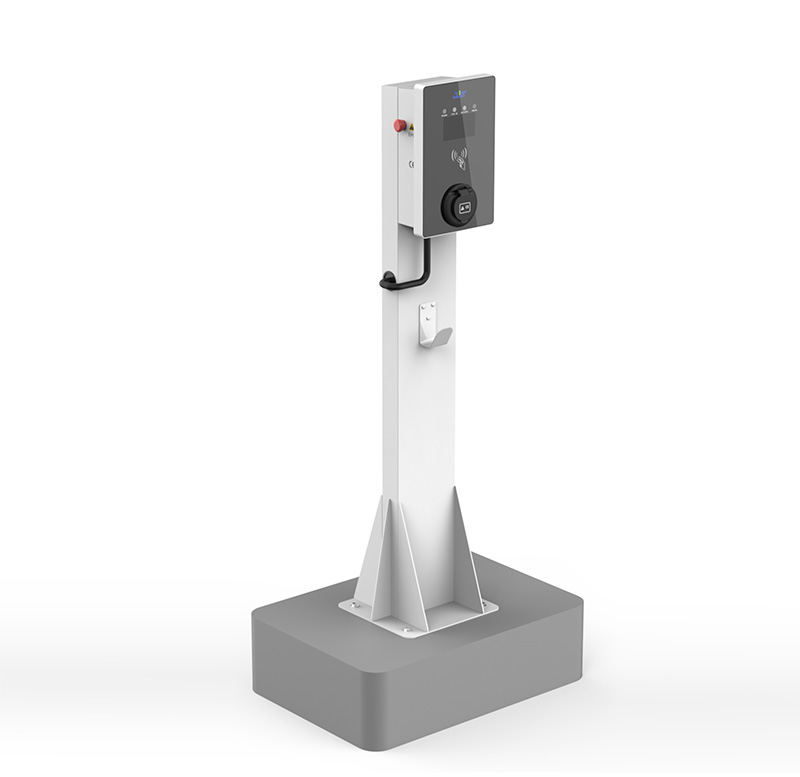

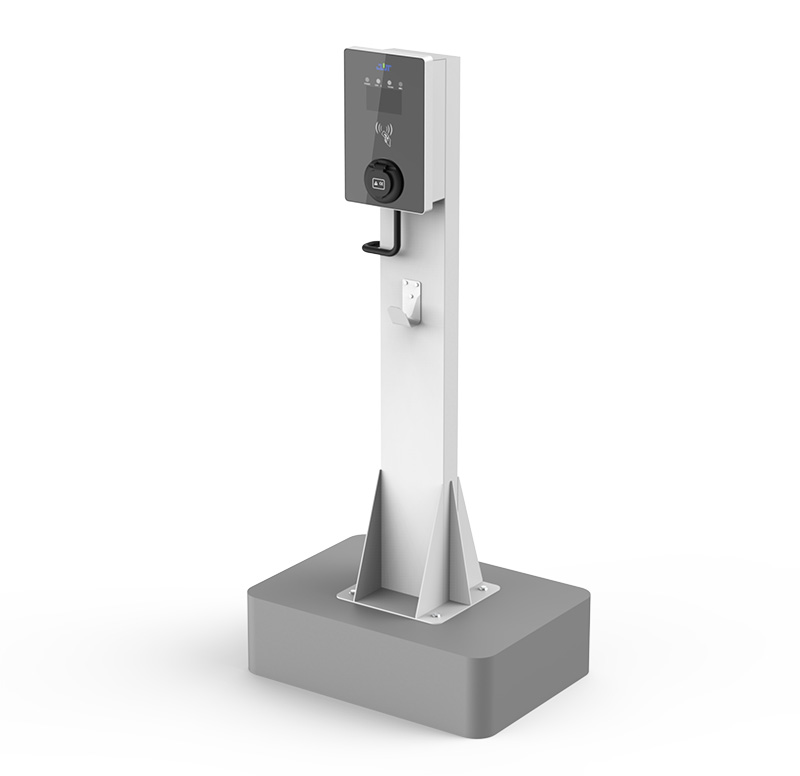

| Installation method | Wall mounting, Pedestal mounting (optional) |
| Cable routing | Bottom/Rear inlet wiring， |
| Weight | N.W.: 8kg,Pedestal: 10kg |
| Charging standard | IEC 61851-1 and IEC 61851-22 |
| Charging outlet | Type-2 socket/ type2 plug with 5M cable |
| Outlet number | 1 |
| Input | |
| Input voltage | 380Vac +/-10%, 3-phase |
| Input frequency | 50Hz/60Hz |
| Output | |
| Max output power | 22kW @ 32A max |
| Measuring accuracy | Level 0.5 |
| Output voltage range | 380Vac +/-10%, 3-phase |
| Output current range | 0 – 32A |
| RCCB | Type-A, sensitivity: 30mA |
| General | |
| Charging type | Mode 3 |

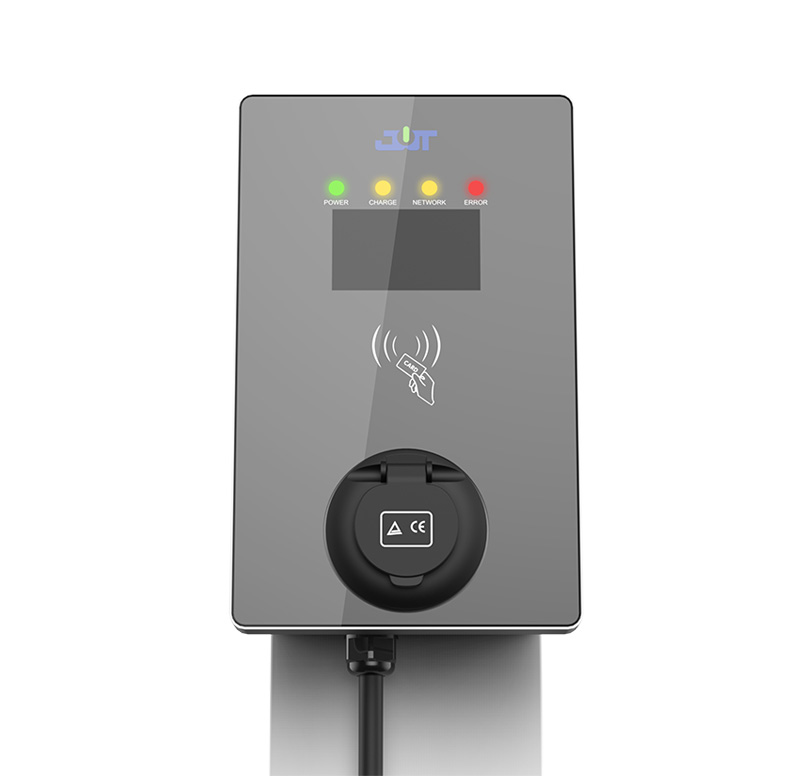

| User Interface | RFID, 4.3” LCD display screen |
| AC output type | AC Type-2 |
| Communication | Wifi,Bluetooth,PWM, Ethernet, 4G (optional), OCPP v1.6 |
| Remote control | Remote firmware update and system reboot via internet |
| Application place | Indoor/Outdoor |
| Working temperature | -30 ° C – +50 ° C |
| Working humidity | 5% – 95% non-condensation |
| Altitude | <2000m |
| Protection grade | IP54 |
| Cooling | Natural cooling |
| Safety standard | Compliant with CE, EN 61851-1-2001; EN 61851-21-2001; EN 61851-22-2001 |
| Security design | Over/under voltage protection, overload protection, current leakage protection, grounding protection, over temp protection, lightening surge protection |
